Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: FN-LINK
  • Model Number: F11AMIM13-B4
  • power voltage: 3.3Vdc ±10% I/O
  • WIFI Standard: IEEE802.11b/g/n
  • Operating Frequency: 2.4GHz
  • Interface Type: Uart/GPIO/I2C/SPI/PWM
  • DATA Rates: 150Mbps
  • Antenna: Plate Antenna
  • Security: WEP,TKIP,AES,WPA,WPA2
  • OS Support: RT-thread OS
  • Dimension: L24*W18mm
  • Main Chipset: RTL8711AM

Packaging & Delivery

Packaging Details Blister parking,take-up package,vacuum packaging
Delivery Time Shipped in 7 days after payment

    Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
    Detailed specifications docs,please download form the official website.

Product Introduction

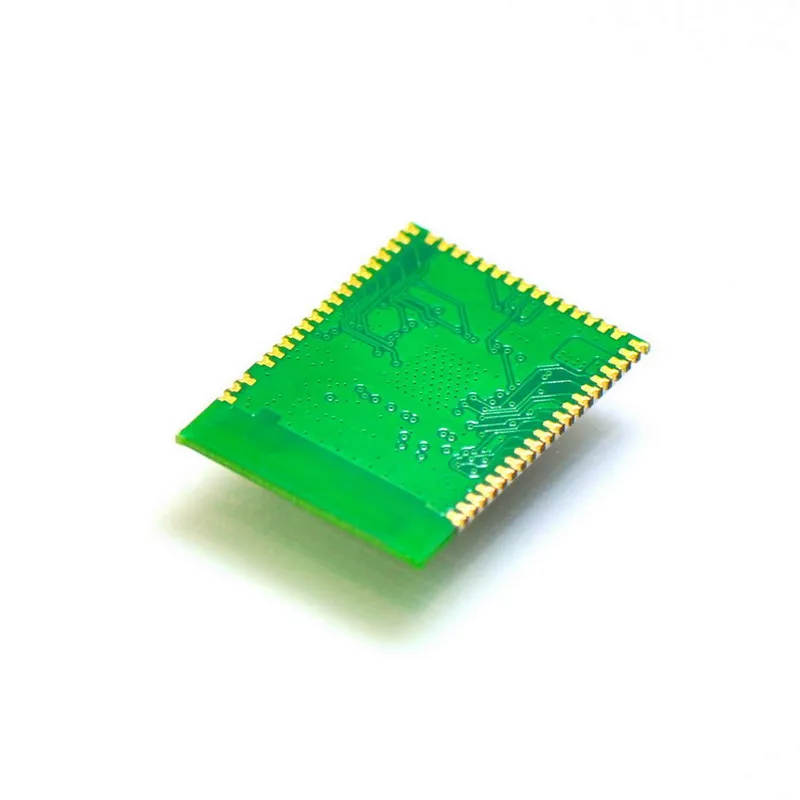

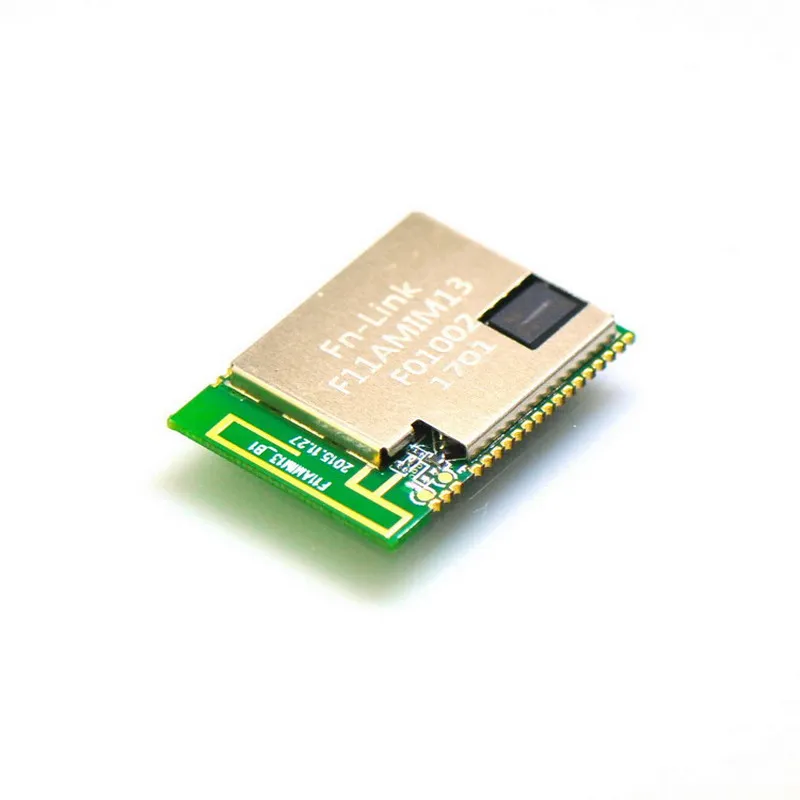

     F11AMIM13-B1 is a highly integrated module with low power 802.11n Wireless LAN(WLAN) network controller. It combines an ARM-CM3 MCU, WLAN MAC, a 1T1R capable WLAN baseband, and RF function. It also provides a bunch of configurable GPIOs which are configured as digital peripherals for different applications and control usage.
F11AMIM13 integrates internal memories for complete WIFI protocol functions.

Application range:

Smart home, intelligent control products

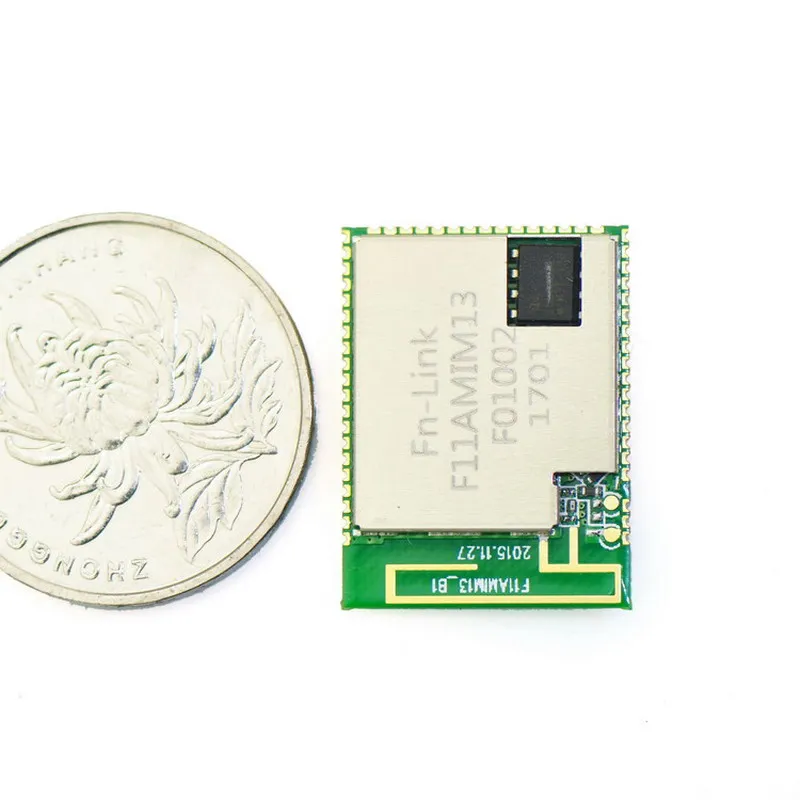

 24mm*18mm*1.6mm

 CMOS MAC, Baseband PHY, and RF in the module for 802.11b/g/n compatible WLAN
 Complete 802.11n solution for 2.4G band
 150Mbps receive PHY rate and 150Mbps transmit PHY rate using 40MHz bandwidth
Standards Supported
 802.11b/g/n compatible WLAN
 802.11e QoS Enhancement(WMM)
 802.11i(WPA,WP2). Open, shared key, and pair-wise key authentication services
 WiFi Direct support
 Light Weight TCP/IP protocol
WLAN PHY Features
 802.11n OFDM

 One Transmit and one Receive path(1T1R)
 20MHz and 40MHz bandwidth transmission
 Short Guard Interval(400ns)
 Maximum data rate 54Mbps in 802.11g and 150Mbps in 802.11n
Host Interface
 2 x UART
 1x I2C
 1x SPI
 3x PWM
 1x ADC

Detailed parameters
Model No
Main Chipset
WIFI/BT Interface
WIFI Standars
DATA Rates
RF Antenna
Plate Antenn
OS Supported
RT-thread OS
Operating Frequency
Operating Voltagc
L x W : 24 x 18  mm
RF Chains
Operating temperature
-20°C to 85°C
Storage temperature
-40°C to 85°C
