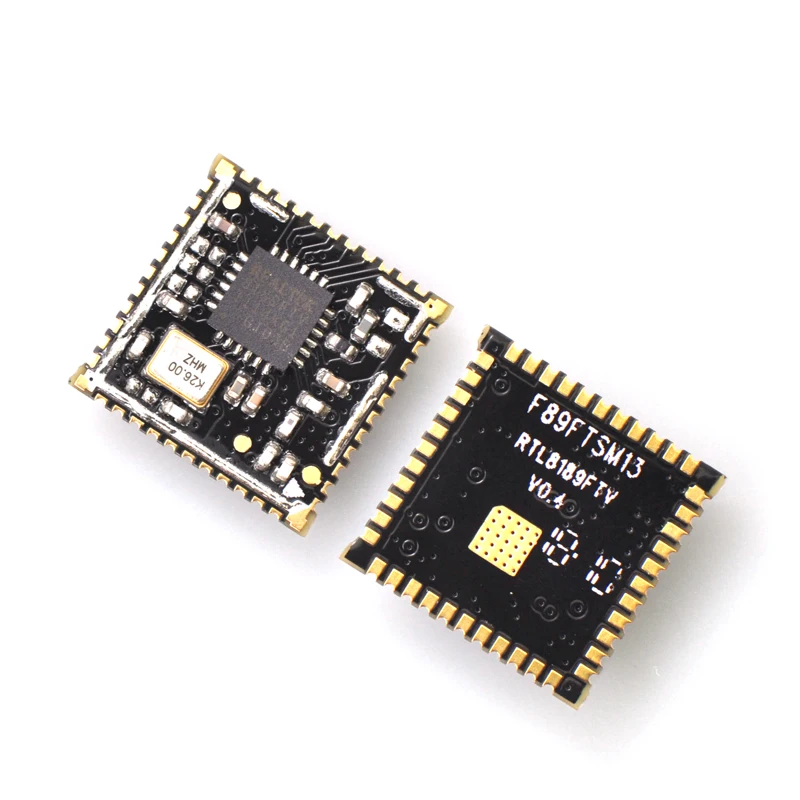

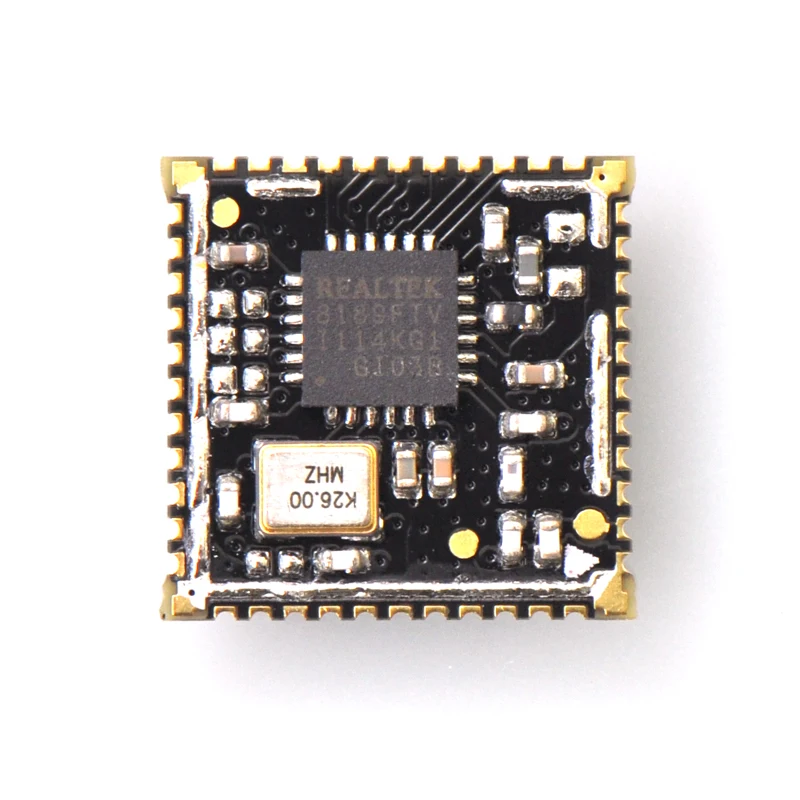

SDIO Interface Wifi + BT module With Realtek 8189FTV

FOB Reference Price:Get Latest Price
US $1.3-1.6 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
FN-LINK
Model Number:
F89FTSM13-W2
power voltage:
3.3Vdc ±10% I/O
WIFI Standard:
IEEE802.11b/g/n
Operating Frequency:
2.4GHz
Interface Type:
SDIO
DATA Rates:
150M
Antenna:
External Antenna
Security:
WEP,TKIP,AES,WPA,WPA2
OS Support:
Windows/Android /Linux
Dimension:
L12.0*W12 mm
Main Chipset:
RTL8189FTV
SupplyAbility
SupplyAbility:
200000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Blister package
take-up package
vacuum package
Port
SZ
Lead Time :
Shipped in 7 days after payment
Product Description

Introduction

This WLAN Module design is based on Realtek
RTL8189FTV. It is a highly integrated single-chip 1*1 MIMO (Multiple In Multiple Out) Wireless LAN (WLAN)
SDIO network interface controller complying with the 802.11n specification. It combines a MAC, a 1T1R
capable baseband, and RF in a single chip. It is designed to provide excellent performance with low power
Consumption and enhance the advantages of robust system and cost-effective.

Features

 Operate at ISM frequency bands (2.4GHz)
 SDIO Interface for WiFi
 IEEE standards support: IEEE 802.11b, IEEE 802.11g, IEEE 802.11n,
 Enterprise level security which can apply WPA/WPA2 certification for WiFi.
 WiFi 1 transmitter and 1 receiver allow data rates supporting up to 150 Mbps downstream and 150 Mbps
upstream PHY rates

Application Range:

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

& Industrial And Vehical Application

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

& Medical Application

Medical equipments/Medical instruments
& Other Consumer Electronic Products

Detailed Parameters
Model No
F89FTSM13-W2
Main Chipset
RTL8189FTV
WIFI/BT Interface
SDIO
WIFI Standars
EEE802.11 b/g/n
Date Rates
150Mbps
Certification
RoHS,REACH
RF Antenna
external Antenn
OS Supported
Android /Linux/ Windows
Operating Frequency
2.4GHz
Operating Voltagc
3.3V
Dimensions
L x W : 12 x 12  mm
RF Chains
1T1R
Operating temperature
-0°C to 70°C
Storage temperature
-40°C to 85°C

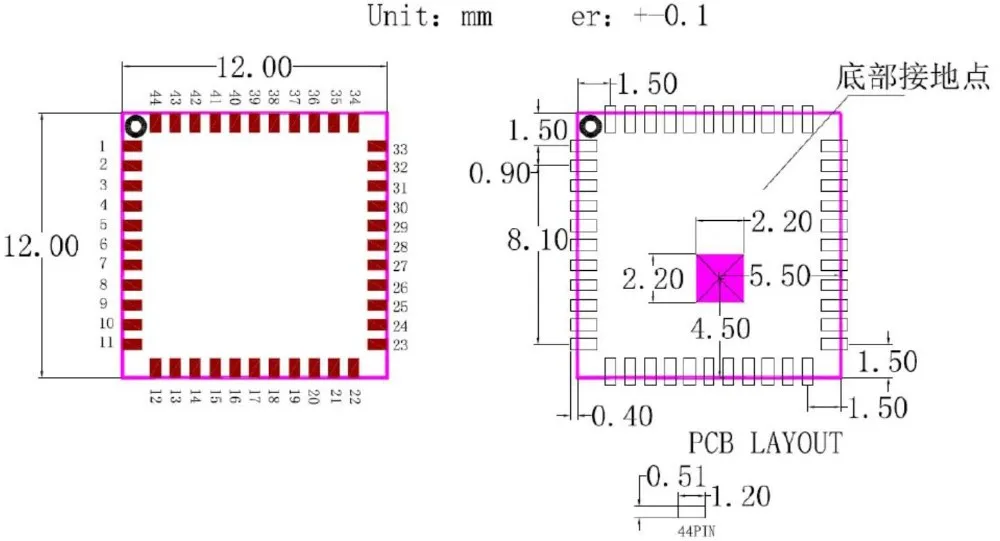

Layout Recommendation

Reference Design

Note

Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
skype:nickren999
