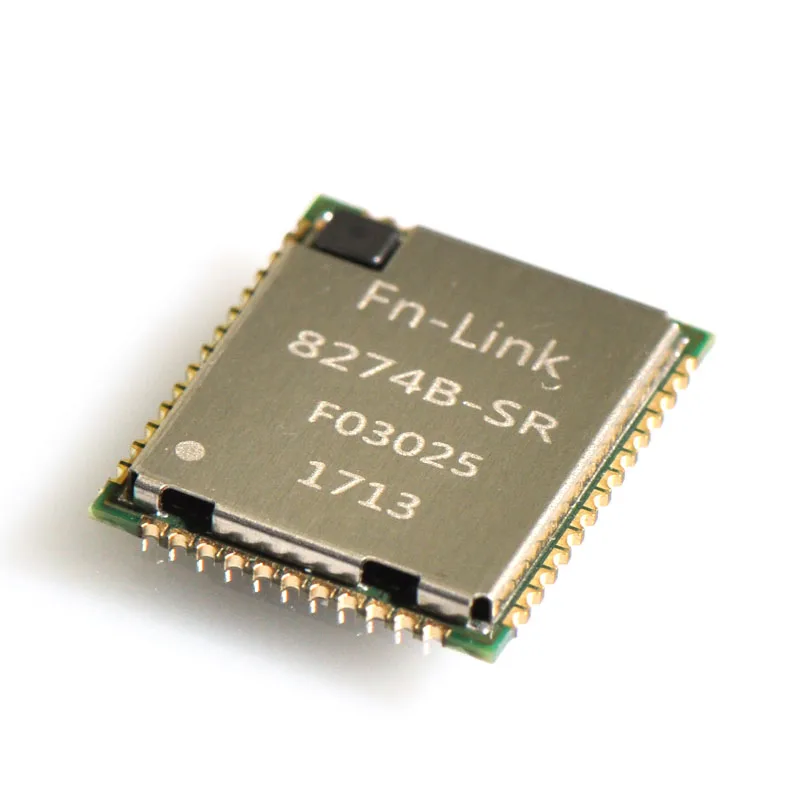

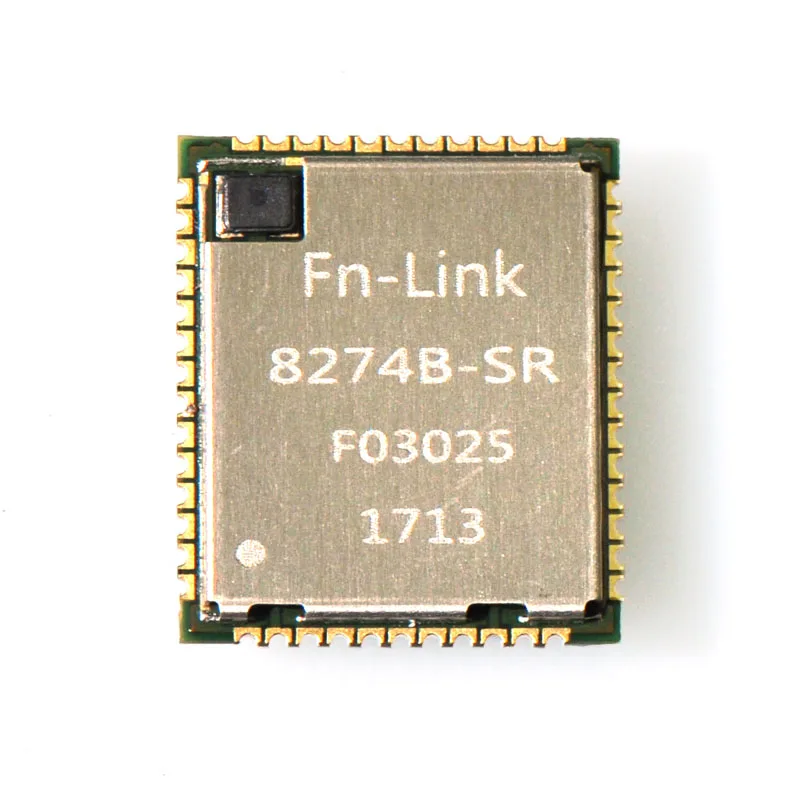

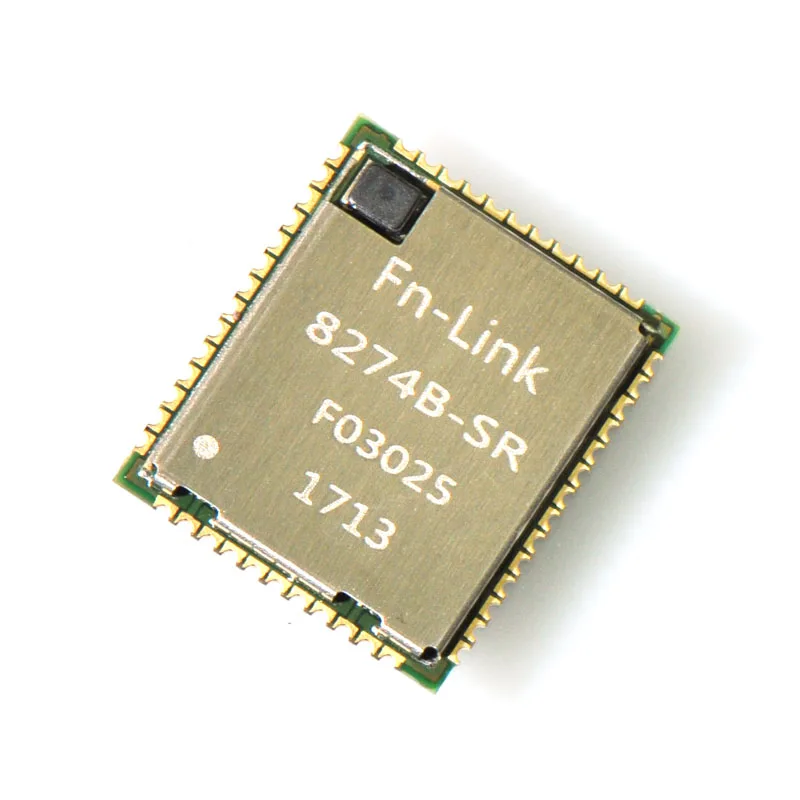

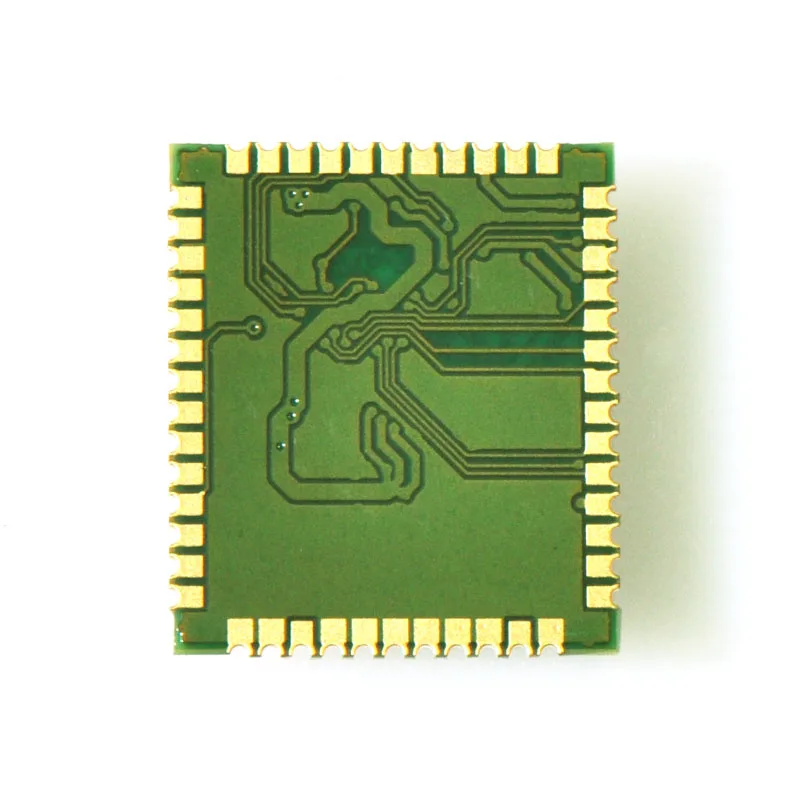

8274B-SR a low-cost and low-power consumption module which has all of the WiFi and Bluetooth functionalities. The highly integrated module makes the possibilities of web browsing, VoIP, Bluetooth headsets applications. With seamless roaming capabilities and advanced security, also could interact with different vendors’ 802.11a/b/g/n/ac 2x2 Access Points in the wireless LAN. The wireless module complies with IEEE 802.11 a/b/g/n/ac 2x2 MIMO standard and it can achieve up to a speed of 867Mbps with dual stream in 802.11n to connect the wireless LAN. The integrated module provides SDIO interface for WiFi, UART / PCM interface for Bluetooth. This compact module is a total solution for a combination of WiFi and Bluetooth V4.2technologies. The module is specifically developed for all portable devices.

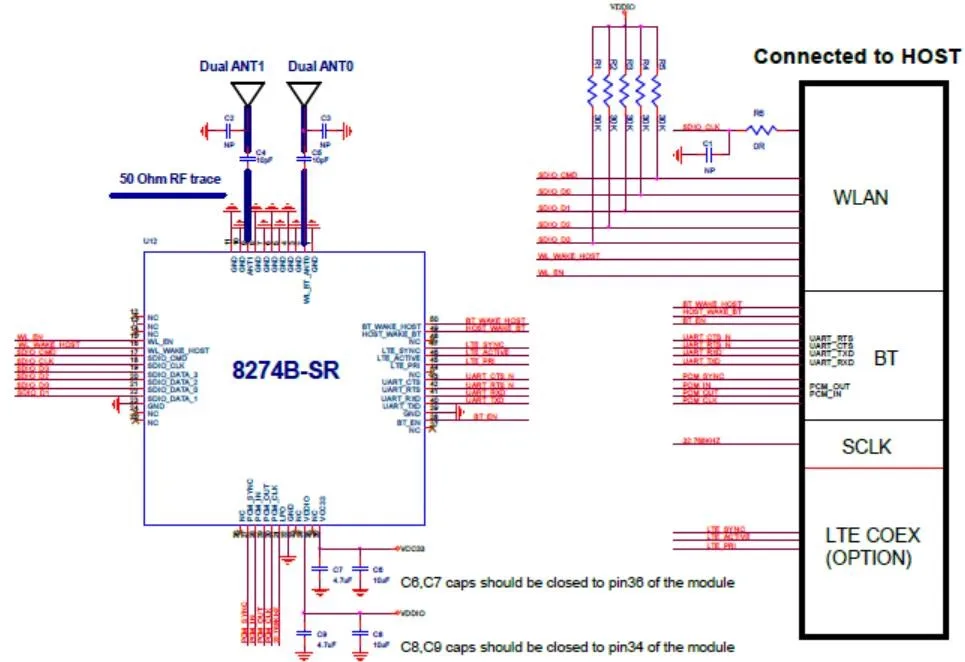

Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ. 802.11ac, or 2.4G/5G 802.11n WLAN applications. Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz. Supports low power SDIO3.0 interface for WLAN and UART/PCM interface for Bluetooth. Supports Bluetooth V4.1+HS, BLE and be backwards compatible with Bluetooth 1.2,2.X+ enhance data rate. Supports WLAN-Bluetooth coexistence and ISM-LTE coexistence. Supports Bluetooth for class1 and class2 power level transmissions without requiring an external PA. BT host digital interface:
- HCI UART (up to 4 Mbps) - PCM for audio data
Tablet / notebook Advertising machine /TV board OTT/IPTV/DVB/STB DV/ IPC/Mini driving recorder / doorbell Smart TV / intelligent projector Pico VR/AR terminal Wireless storage Printer /POS machine / electronic said Vehicle mounted front / rear terminal UAV / robot Intelligent Gateway Toys Lighting lamps / intelligent street lamps Smart home appliances / appliances Instrument and meter (water, electricity, gas) Smart city and other consumer electronic products
