F12ASUM13-W1 is a highly integrated single-chip MIMO (Multiple In, Multiple Out) Wireless LAN(WLAN) USB2.0 network interface controller complying with the wireless very high throughput IEEE 802.11ac Draft 2.0 and 802.11n specifications. The RTL8812AU provides a complete solution for a high-performance wireless client and also supports WIFI Direct feature that can easily build a WIFI P2P PAN network.

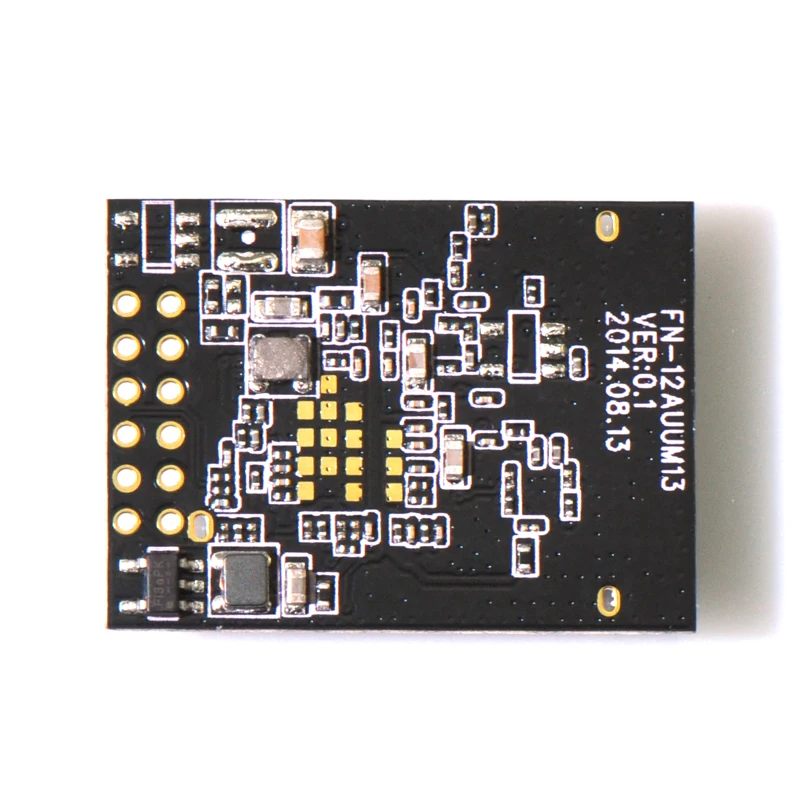

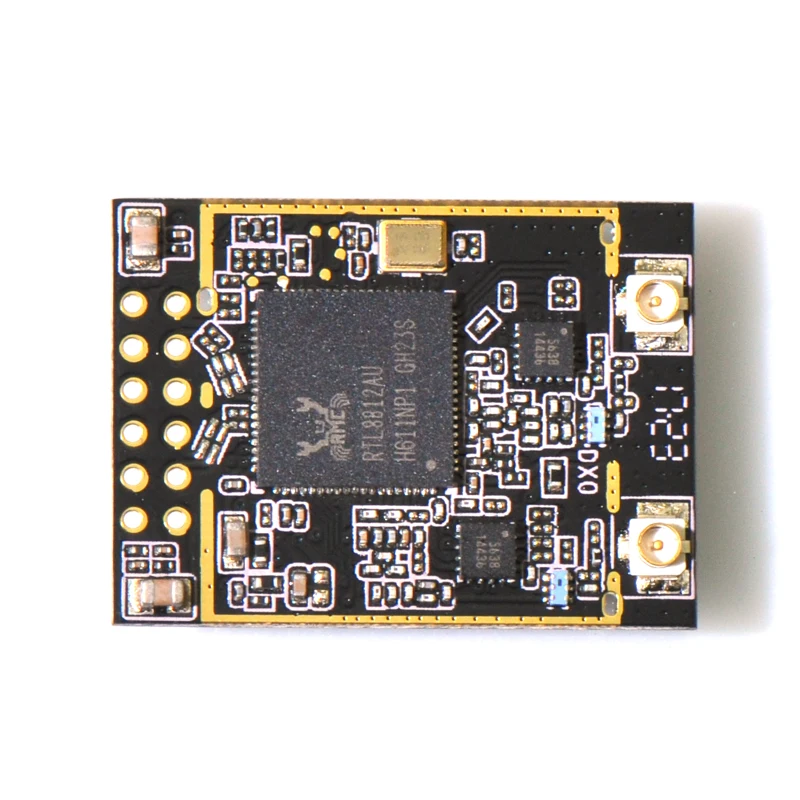

1.1 Overview The general hardware for the module is shown in Figure 1. This WLAN Module design is based on Realtek RTL8812AU. It is a highly integrated single-chip MIMO Wireless LAN (WLAN) USB2.0 network interface controller complying with the 802.11a/b/g/n/ac specification. It combines a MAC, a 2T2R capable baseband, support 2.4G & 5G band, and RF in a single chip. It is designed to provide excellent performance and enhance the advantages of robust system and cost-effective.
Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ. 802.11ac, or 2.4G/5G 802.11n WLAN applications. Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz. Supports low power SDIO3.0 interface for WLAN and UART/PCM interface for Bluetooth. Supports Bluetooth V4.1+HS, BLE and be backwards compatible with Bluetooth 1.2,2.X+ enhance data rate. Supports WLAN-Bluetooth coexistence and ISM-LTE coexistence. Supports Bluetooth for class1 and class2 power level transmissions without requiring an external PA. BT host digital interface:
- HCI UART (up to 4 Mbps) - PCM for audio data
& Consumer Application
Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys
Medical equipments/Medical instruments & Other Consumer Electronic Products
Android /Linux/ Windows

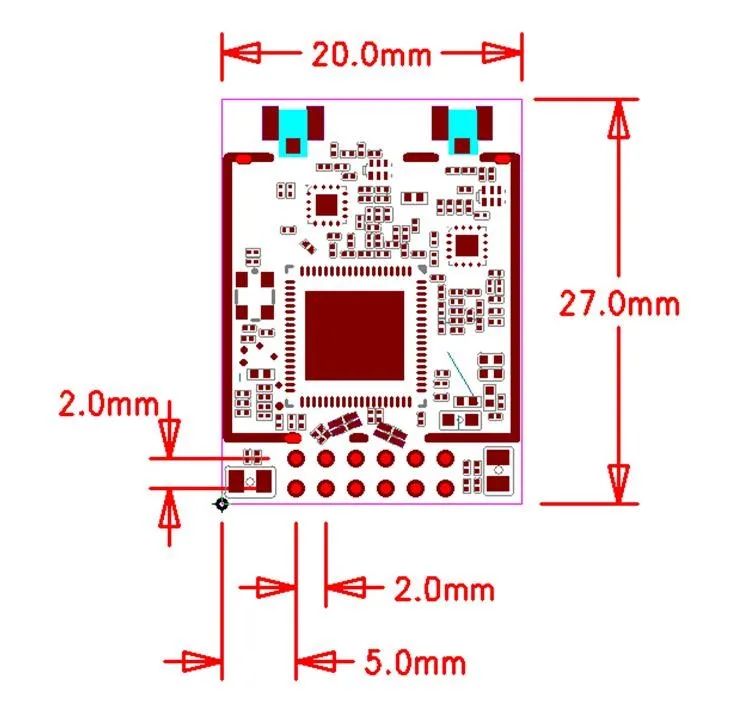

L x W : 27 x 20 mm
-0°C to 70°C
-40°C to 85°C
