Ofeixin 6222D-UUB With RTL8822BU Chipset WiFi Dual-band 2X2 11ac + Bluetooth V4.1 5ghz Wifi Module

FOB Reference Price:Get Latest Price
US $6.2-8.5 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
FN-LINK
Model Number:
6222D-UUB
power voltage:
3.3Vdc
WIFI Standard:
IEEE802.11a/b/g/n/ac
Operating Frequency:
2.4G/5.8G
Host Interface:
USB
DATA Rates:
867Mbps
Antenna:
External Antenna
Security:
WEP,TKIP,AES,WPA,WPA2
OS Support:
Android /Linux
Dimension:
L27*W18mm
Main Chipset:
RTL8222BU
Supply Ability
Supply Ability:
200000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Blister package
take-up package
vacuum package
Port
ShenZhen
Product Description

Introduction

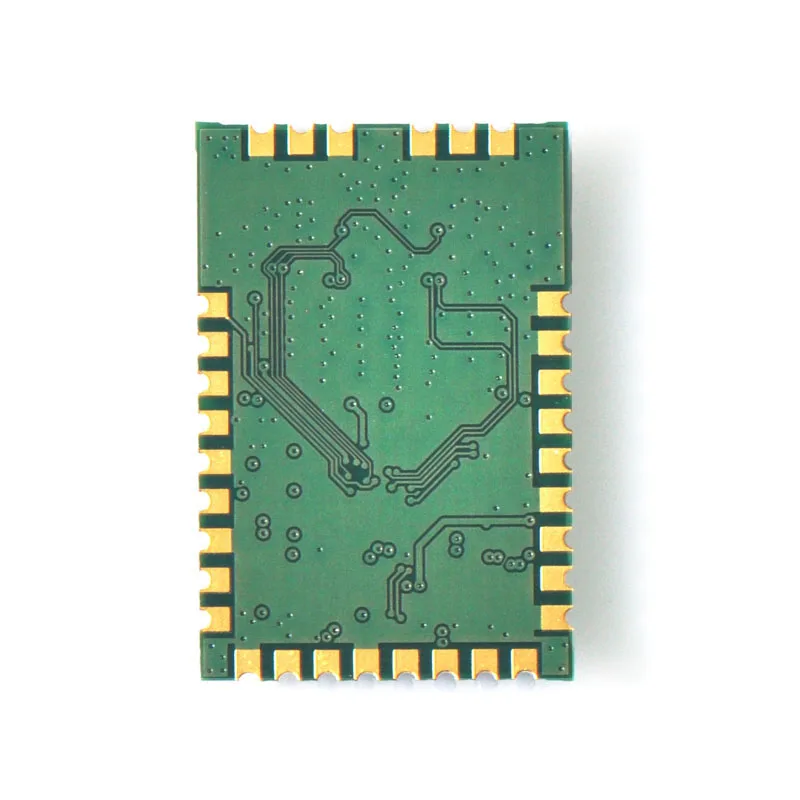

Fn-Link 6222D-UUB is a low-cost and low-power consumption module
which has all of the WiFi and Bluetooth functionalities.The highly integrated module makes the possibilities of web browsing, VoIP, Bluetooth headsets applications. With seamless roaming capabilities and advanced security, also could interact with different vendors'
802.11a/b/g/n/ac 2x2 Access Points in the wireless LAN.
The wireless module complies with IEEE 802.11 a/b/g/n/ac 2x2 MIMO standard and it can achieve up to a speed of 867Mbps with dual stream in 802.11n to connect the wireless LAN.
The integrated module provides USB interface for WiFi and Bluetooth.This compact module is a total solution for a combination of WiFi + BT technologies. The module is specifically developed for Smart TV and OTT Box application.

Features

 Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ 802.11ac, or 2.4G/5G 802.11n WLAN applications.
 Dual-stream spatial multiplexing up to 867 Mbps data rate.
 Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz
 Supports USB interface for WLAN and Bluetooth.
 Supports Bluetooth V4.2+HS, BLE and be backwards compatible with Bluetooth 1.2,2.X+ enhance data rate.
 Supports Bluetooth for class1 and class2 power level transmissions.


Application Range:

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

& Industrial And Vehical Application

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

& Medical Application

Medical equipments/Medical instruments
& Other Consumer Electronic Products

Detailed Parameters
Model No
6222D-UUB
Main Chipset
RTL6222BU
WIFI/BT Interface
USB2.0/USB3.0
WIFI Standars
EEE802.11a/b/g/n/ac        BT4.1/BLE/BT1.2/BT2.X
DATA Rates
867Mbps
Certification
RoHS,REACH
RF Antenna
external Antenn
OS Supported
Android /Linux/windows
Operating Frequency
2.4/5.8G
Operating Voltagc
3.3V

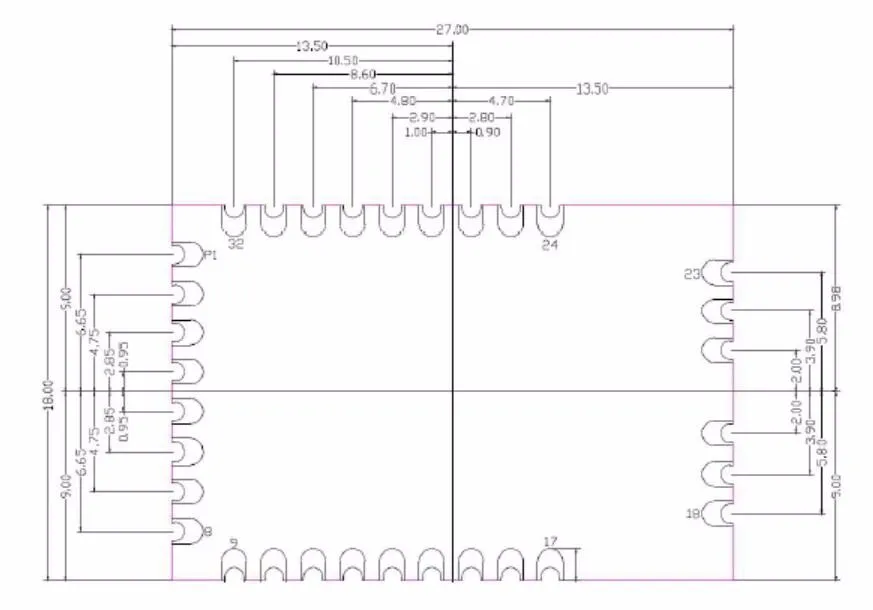

Dimensions
L x W : 27x 18  mm
RF Chains
1T1R
Operating temperature
-10°C to 70°C
Storage temperature
-40°C to 85°C
Note

Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
