Smart Home Wifi Module With Qualcomm1023 5ghz Wifi Module
- Place of Origin:
-
Guangdong, China (Mainland)
- Brand Name:
-
FN-LINK
- Model Number:
-
8223A-UU
- power voltage:
-
3.3/5V Vdc
- WIFI Standard:
-
IEEE802.11a/b/g/n/ac
- Operating Frequency:
-
2.4/5.8GHz
- Host Interface:
-
USB2.0
- DATA Rates:
-
433Mbps
- Antenna:
-
External Antenna
- Security:
-
WEP,TKIP,AES,WPA,WPA2
- OS Support:
-
Android /Linux
- Dimension:
-
L12*W12mm
- Main Chipset:
-
QCA1023
- Supply Ability:
- 200000 Piece/Pieces per Day
- Packaging Details
- Blister package
take-up package
vacuum package
- Port
- ShenZhen
Introduction

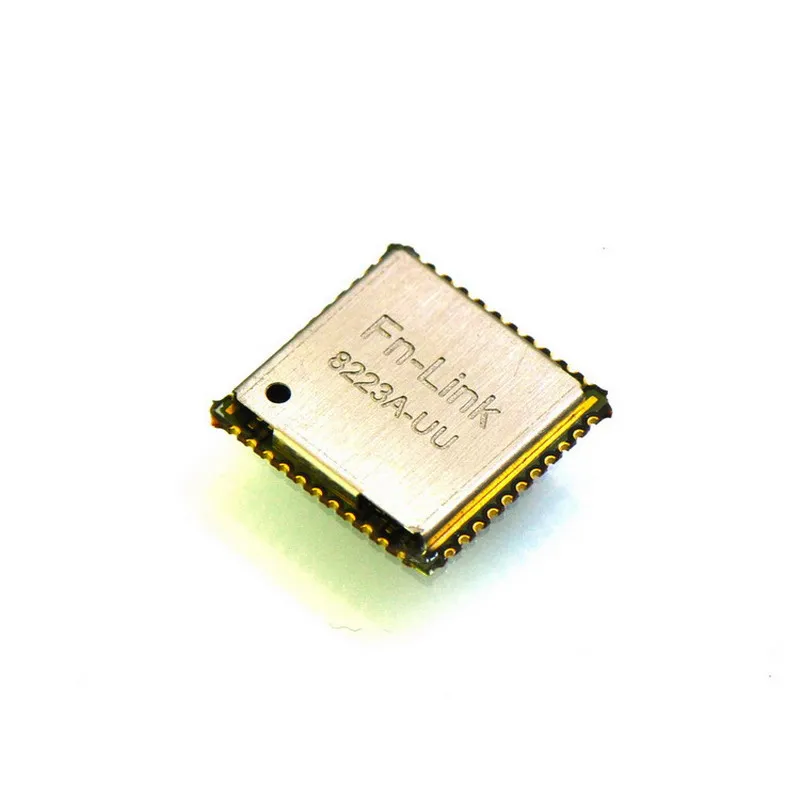

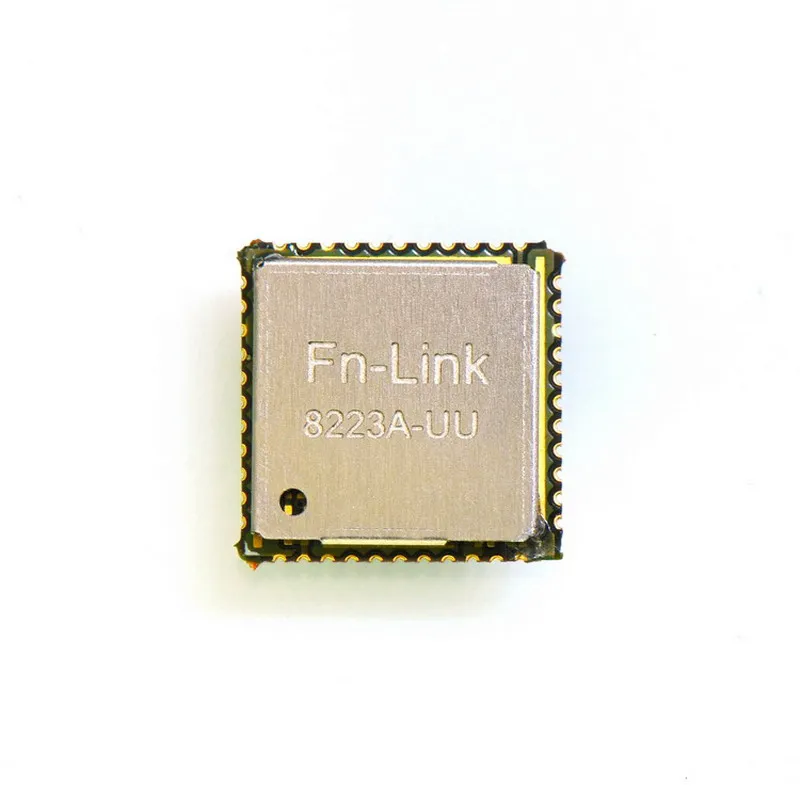

8223A-UU is a low-cost and low-power consumption module
which has all of the Wi-Fi, Bluetooth functionalities. The highly integrated module makes the possibilities of web browsing, VoIP, Bluetooth headsets applications. With seamless roaming
capabilities and advanced security, also could interact with different vendors' 802.11a/b/g/n/ac Access Points in the wireless LAN.
The wireless module complies with IEEE 802.11 a/b/g/n/ac standard and it can achieve up to a speed of 433.3Mbps with single stream in 802.11ac draft to connect to the wireless LAN.
The integrated module provides USB interface for Wi-Fi and Bluetooth.
This compact module is a total solution for a combination of Wi-Fi + BT technologies. The module is specifically developed for Smart phones and Portable devices.

Features
Highly integrated wireless local area network(WLAN) system-on-chip (SOC) for 5 GHZ.
802.11ac, or 2.4G/5G 802.11n WLAN applications.
Supports 20/40MHz at 2.4GHz and supports 20/40/80MHz at 5GHz.
Supports low power SDIO3.0 interface for WLAN and UART/PCM interface for Bluetooth.
Supports Bluetooth V4.1+HS, BLE and be backwards compatible with Bluetooth 1.2,2.X+ enhance data rate.
Supports WLAN-Bluetooth coexistence and ISM-LTE coexistence.
Supports Bluetooth for class1 and class2 power level transmissions without requiring an external PA.
BT host digital interface:
- HCI UART (up to 4 Mbps)
- PCM for audio data


Application Range:
& Consumer Application
Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys
& Commercial And OA Application
Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment
& Industrial And Vehical Application
Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile
& Medical Application
Medical equipments/Medical instruments
& Other Consumer Electronic Products

Model No | 8223A-UU | Main Chipset | QCA1023 |
WIFI/BT Interface | USB | WIFI Standars | EEE802.11a/b/g/n/ac BT4.1/BLE/BT1.2/BT2.X |
DATA Rates | 433Mbps | Certification | RoHS,REACH |
RF Antenna | external Antenn | OS Supported | Android /Linux |
Operating Frequency | 2.4/5.8GHz | Operating Voltagc | 3.3V/5V |

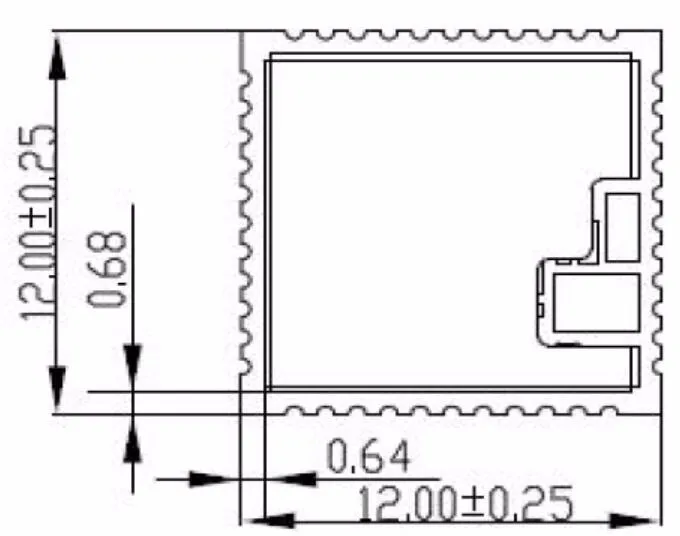

Dimensions | L x W : 12x 12 mm | RF Chains | 1T1R |
Operating temperature | -30°C to 85°C | Storage temperature | -40°C to 85°C |

Respected customers ,thank you for your interest in our product! Before placing the order please contact our sales staff to confirm inventory.
Detailed specifications docs,please download from the official website.
skype:15982299436
