LoRa module LoRaWAN(9176FS-XX) (New Products need to contact the sales staff) SX1276

FOB Reference Price:Get Latest Price
US $7.5-9.2 / Pieces | 5 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
FN-LINK
Model Number:
9176FS-XX
power voltage:
3.3 Vdc
Operating Frequency:
868/915M
Host Interface:
Uart/GPIOs
Antenna:
External Antenna
Dimension:
L22*W14mm
Main Chipset:
SX1276
Supply Ability
Supply Ability:
200000 Piece/Pieces per Day
Packaging & Delivery
Packaging Details
Blister package
take-up package
vacuum package
Port
ShenZhen
Product Description

Introduction

Fn-Link Technology would like to announce a low-cost and ultra low-power consumption module which has LORA modem with MCU functionalities. The LORA module that provides ultra-long range spread spectrum communication and high interference immunity whilst minimizing current consumption.
The module also provides significant advantages in both blocking and selectivity over conventional modulation techniques, solving the tradition deign compromise between range, interference immunity and energy consumption. Also support high performance (G)FSK models for systems including WMBus, IEEE802.15.4g.

Features

168 dB maximum link budget
+14dBm/20dBm high efficiency PA
Programmable bit rate up to 300Kbps
High sensitivity: down to -148dBm
Low RX current of 9.9mA, 200nA register retention
FSK, GFSK, MSK, GMSK, LORA and OOK modulation
127dB Dynamic Range RSSI
Automatic RF Sense and CAD with ultra-fast AFC, packet engine up to 256 bytes with CRC

Application Range:

& Consumer Application

Tablet/Smart TV/IPTV/OTT/IPC/AI Speaker/Security System /Toys

& Commercial And OA Application

Printer/POS Terminal/Projector/Meeting System/Interactive WhiteBoard/Education Equipment

& Industrial And Vehical Application

Instruments/Vehicle before-assembly/ afterassembly/High-speed train/Charging pile

& Medical Application

Medical equipments/Medical instruments
& Other Consumer Electronic Products

Detailed Parameters
Model No
9176FS-XX
Main Chipset
SX1276
WIFI/BT Interface
Uart/GPIOs
WIFI Standars
Operation Range
Certification
RoHS,REACH
RF Antenna
external Antenn
OS Supported
Operating Frequency
868/915MHz
Operating Voltagc
3.3V

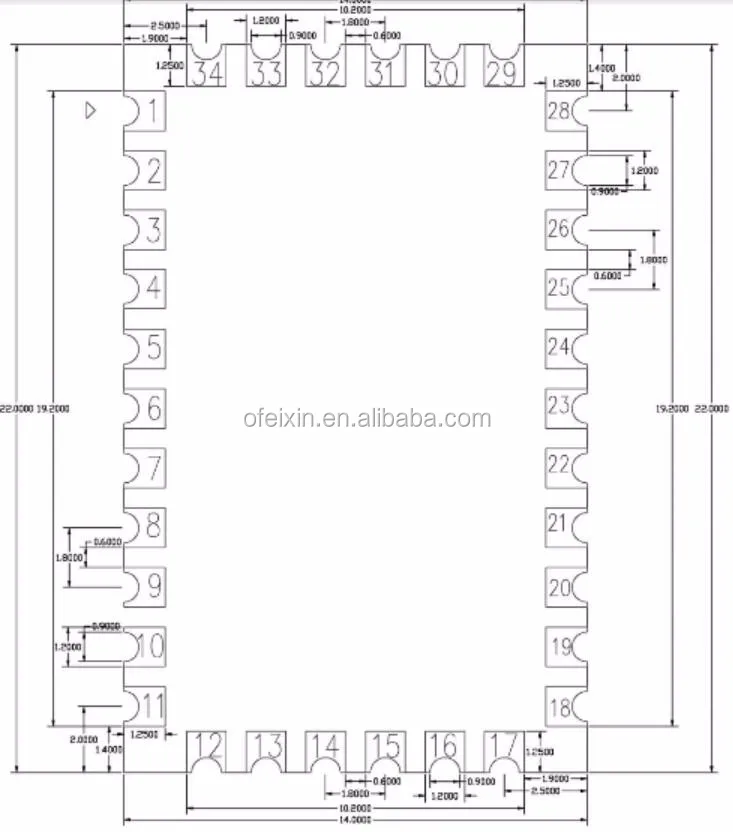

Dimensions
L x W : 22x 14  mm
RF Chains
1T1R
Operating temperature
-40°C to 85°C
Storage temperature
-40°C to 85°C
Note

Respect of the customer,please contact the sales staff before purchasing module to carry out pre-sale consultation.Otherwise,the module may not meet your needs or modules have no inventory.
Detailed specifications docs,please download from the official website or sales.
skype:15982299436
